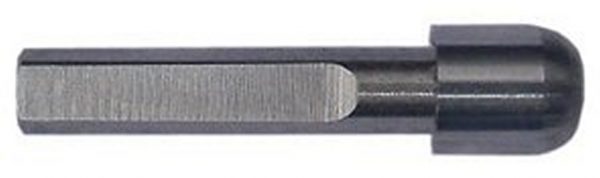

Countersink Removable Pilot

SKU:

$25.35 ex. GST

Australian Made.
High Speed Steel interchangeable pilot to suit the following countersinks:

HSS (High Speed Steel)
UCT 210085 1250 – 1/2″ x 100 degree (sold separately)
UCT 210087 1250 – 5/8″ x 100 degree (sold separately)
UCT 240367 1250 – 5/8″ x 120 degree (sold separately)

TCT (Tungsten Carbide Tipped)
UCT 210086 1250 – 1/2″ x 100 degree (sold separately)
UCT 210455 – 1/2″ x 130 degree (sold separately)
UCT 210088 1250 – 5/8″ x 100 degree (sold separately)

PCD (Polycrystalline Diamond)
UCT 070141 – 1/2″ x 100 degree (sold separately)
UCT 070180 – 1/2″ x 130 degree (sold separately)
UCT 080796 – 5/8″ x 100 degree (sold separately)
UCT 070381 – 5/8″ x 130 degree (sold separately)



Pilot diameter: Specified when ordering
Shank diameter: .1250″.
Shank has a flat to ensure grubscrew seats firmly.
Designed to protrude from the countersink by approximately 5mm.

SKU: N/A Categories: ,

Description

Australian Made.
High Speed Steel interchangeable pilot to suit the following countersinks:

HSS (High Speed Steel)
UCT 210085 1250 – 1/2″ x 100 degree (sold separately)
UCT 210087 1250 – 5/8″ x 100 degree (sold separately)
UCT 240367 1250 – 5/8″ x 120 degree (sold separately)

TCT (Tungsten Carbide Tipped)
UCT 210086 1250 – 1/2″ x 100 degree (sold separately)
UCT 210455 – 1/2″ x 130 degree (sold separately)
UCT 210088 1250 – 5/8″ x 100 degree (sold separately)

PCD (Polycrystalline Diamond)
UCT 070141 – 1/2″ x 100 degree (sold separately)
UCT 070180 – 1/2″ x 130 degree (sold separately)
UCT 080796 – 5/8″ x 100 degree (sold separately)
UCT 070381 – 5/8″ x 130 degree (sold separately)



Pilot diameter: Specified when ordering
Shank diameter: .1250″.
Shank has a flat to ensure grubscrew seats firmly.
Designed to protrude from the countersink by approximately 5mm.

Additional information

Pilot Ø

.0937" (3/32"), .0980" (#40 WG), .0995" (#39 WG), .1015" (#38 WG), .1040" (#37 WG), .1065" (#36 WG), .1094" (7/64"), .1100" (#35 WG), .1110" (#34 WG), .1130" (#33 WG), .1160" (#32 WG), .1250" (1/8"), .1285" (#30 WG), .1360" (#29 WG), .1405" (#28 WG), .1406" (9/64"), .1440" (#27 WG), .1470" (#26 WG), .1495" (#25 WG), .1520" (#24 WG), .1540" (#23 WG), .1562" (5/32"), .1570" (#22 WG), .1590" (#21 WG), .1610" (#20 WG), .1660" (#19 WG), .1695" (#18 WG), .1719" (11/64"), .1730" (#17 WG), .1770" (#16 WG), .1800" (#15 WG), .1820" (#14 WG), .1850" (#13 WG), .1875" (3/16"), .1890" (#12 WG), .1910" (#11 WG), .1935" (#10 WG), .1960" (#9 WG), .1990" (#8 WG), .2010" (#7 WG), .2031" (13/64"), .2040" (#6 WG), .2055" (#5 WG), .2090" (#4 WG), .2130" (#3 WG), .2187" (7/32"), .2210" (#2 WG), .2280"" (#1 WG), .2344" (15/64"), .2500" (1/4")
